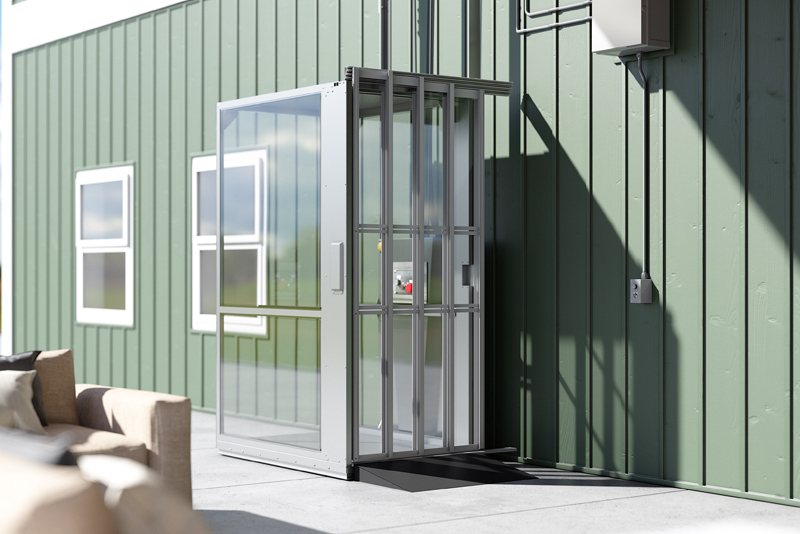

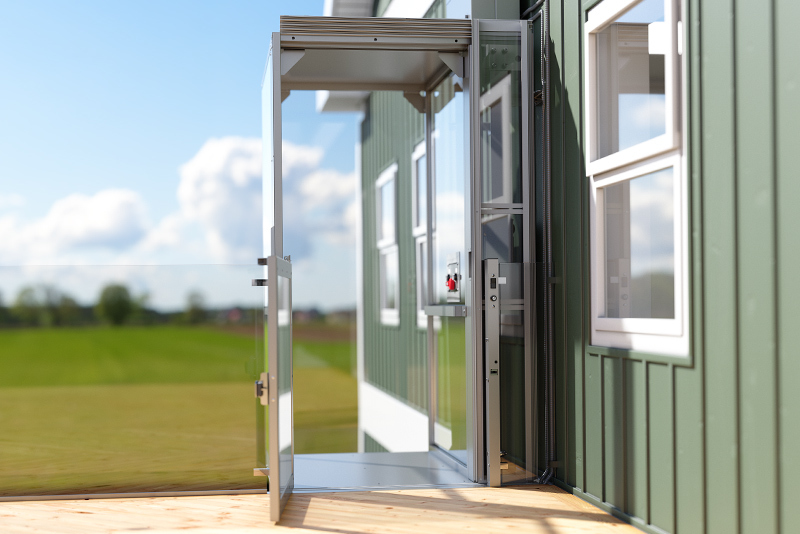

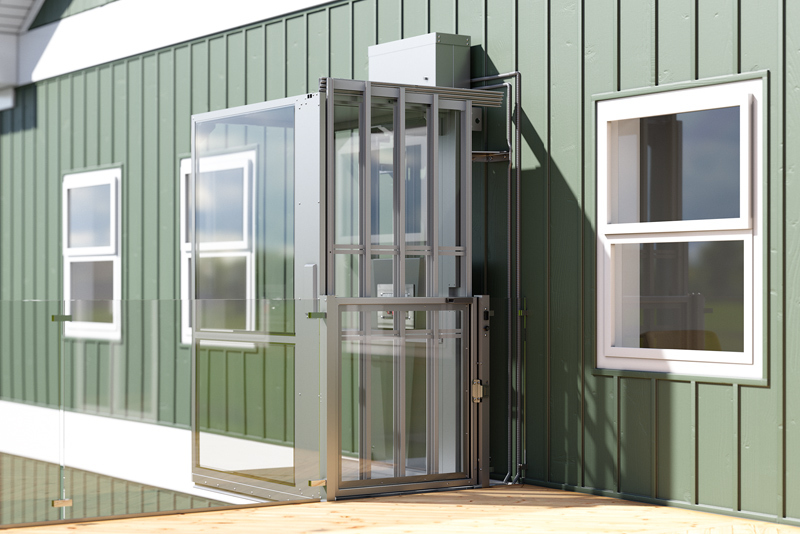

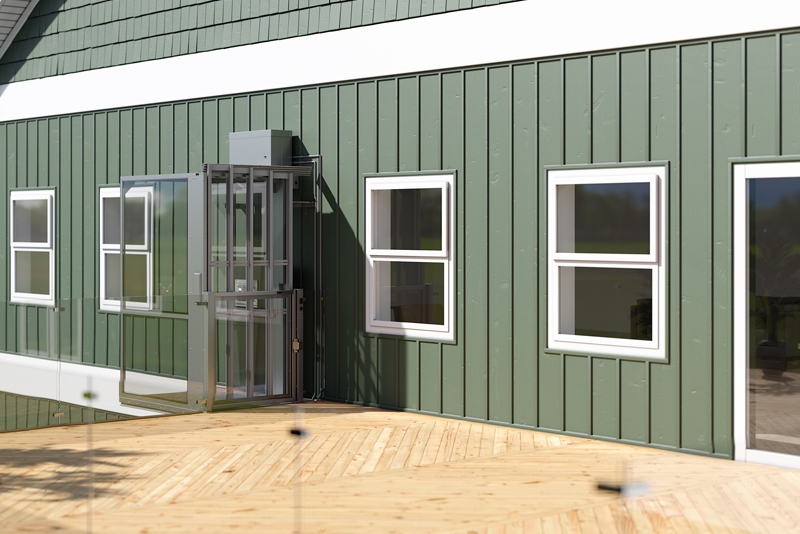

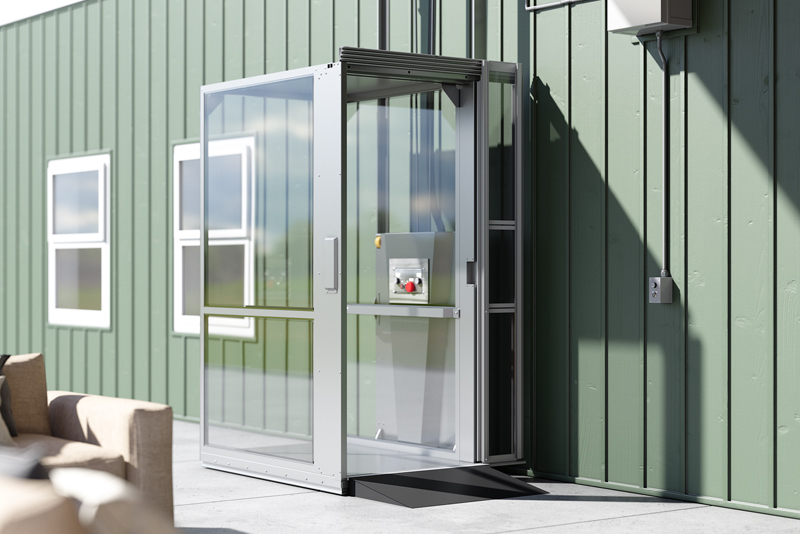

Able to hold up to 750lb, this fully outfitted modern outdoor elevator is designed with an incredibly strong, yet see-through polycarbonate cab and gate, aluminum framed cab and galvanized steel rails to prevent it from rusting while being outdoors.
We understand that time is of the essence when it comes to your safety, and we are committed to having your Victorian Outdoor Elevator up and running in your home in just a few weeks!
| Applications | Residential Outdoor Elevator |
| Capacity | 750 lb |
| Maximum Travel Distance | 25' |
| Cab Dimensions (standard) | 36x54 |
| Speed (per minute) | 24' |
| Minimum Overhead Required | 90" |
| Type | Winding Drum |
| Cab Heights | 84" |
| Max Landings | 2 |
| Power Requirement | 120VAC 15A Single Phase |
| Pit Depth | 3" minimum |
| Safety | Underpan |
Options Available for the Victorian Outdoor Elevator
- Victorian Outdoor Elevator Includes
36x54x84 Extruded Aluminum Cabin $0.00
Call/Send for Each Stop $0.00
Handrail and Fixed Ramp $0.00
Modern See-through Sliding Car Gate (2 provided for 180 Degree Car) $0.00
Upper Landing Polycarbonate Gate $0.00
Safety Underpan and Supporting Brackets $0.00
- Number of Stops
Two Stop $0.00
- Tower/Access Configuration
Select from Below $0.00
Same Side Entry/Exit - Tower on Left $0.00
Same Side Entry/Exit - Tower on Right $0.00
180 Degree Entry/Exit - Tower on Left $0.00
180 Degree Entry/Exit - Tower on Right $0.00
- Landing Doors (Interlock Included with Door)
No Door (For Doors Provided by Others) $0.00
Interlock Only (For Doors Provided by Others) $399.00
Door 80" H x 36" W Interior $1,350.00
Door 80" H x 36" W Exterior $2,320.00
Door 80" H x 36" W Fire Rated $1,995.00
Door 80" H x 36" W Exterior Polycarbonate $2,399.00
Door 80" H x 42" W Interior $2,295.00
Door 80" H x 42" W Exterior $3,250.00
Door 80" H x 42" W Fire Rated $2,850.00
Door 80" H x 42" W Exterior Polycarbonate $3,250.00
- Call/Send Options
Call/Send Control must be selected for every Door or Gate Ordered $0.00
Keyed Call/Send Post $0.00
Keyed Call/Send Surface Mount $0.00
Keyed Call/Send In Gate's Frame - Upper Landing Only $0.00
- Auto Gate Operator (Not for Bottom Landing Door)
Auto Operator for Gate Qty. $1,495.00
- State Required Inspections / Permits / Evaluations
Alabama residents, please call 1 (205) 202-0158 for installation and permit pricing. $0.00
- Delivery Options
Pick up at Local Freight Terminal $0.00
Factory Pickup $0.00
Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site $0.00
Site Shipping - Liftgate Delivery (not available for 98" and taller models) $250.00
Site Shipping - Flatbed & Forklift Delivery (Available in Most Areas)(for 98" and taller models) $1,495.00
