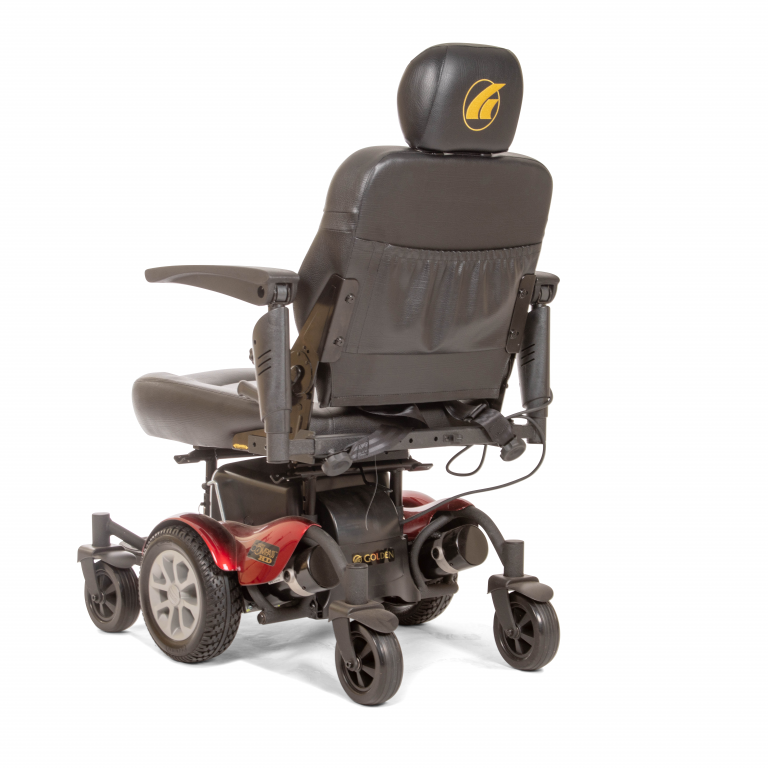

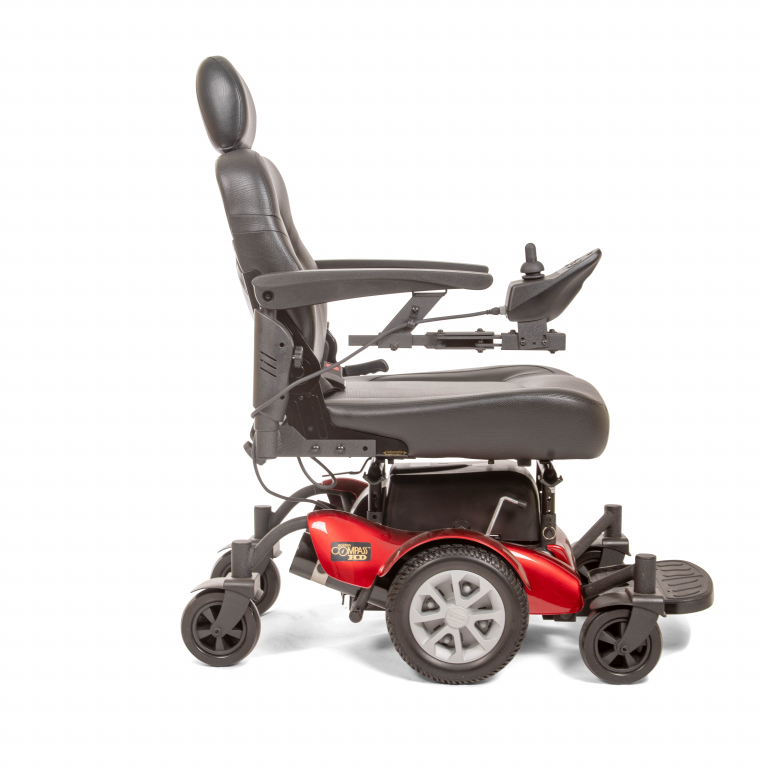

The Compass HD features front and rear height-adjustable seat posts, padded flip-up armrests, an easy-to-use sliding seat bracket and a fully adjustable footplate. With this lineup of features, the Golden Compass HD can take you to places you could only imagine!
| Weight Capacity | 450 lb |
| Overall Length | 39.8" |
| Overall Width | 25" |
| Range | 12 mi |
| Weight, Base | 90 lb |
| Turning Radius | 20" |
| Weight, Total | 209 lb |
| Top Speed | 4 mph |
| Weight, Seat | 35 lb |
| Minimum Seat Height | 20.5" |
| Maximum Seat Height | 23.5" |
| Weight, Batteries | 70 lb |
| Drive Wheels | 10" Flat Free |
| Caster Wheels | 6" Flat Free |
| Charger Type | Off-board, 5 Amp |

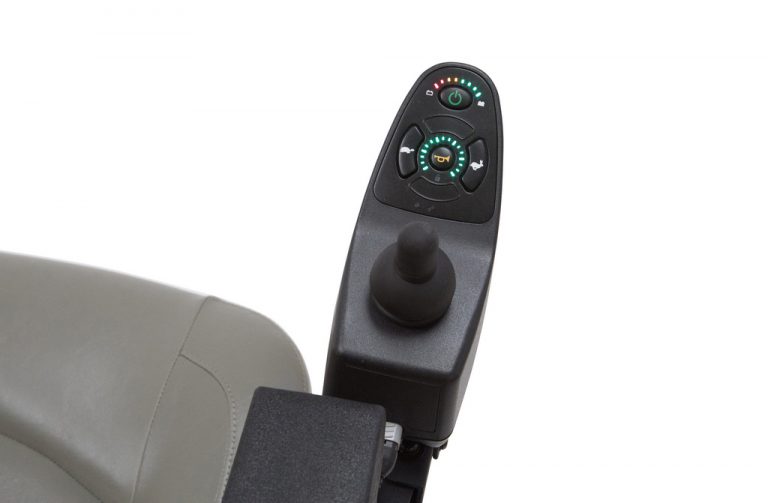

| Controller Type | Dynamic Shark, 75 Amp Programmable |
| Battery Type | 22NF x 2 |
Options Available for the Golden Compass HD
- Color
Candy Apple Red $0.00
Blue $0.00
- Batteries
22NF Batteries (set of 2) $0.00
- Controller Position
Controller On The Left $0.00
Controller On The Right $0.00
- Seating
High Back Captain's Chair, 20" W x 20" D $0.00
High Back Captain's Chair, 22" W x 20" D $0.00
High Back Captain's Chair, 24" W x 20" D $0.00
Custom Seat Sizes, Pan Seats, or Proflex Seating Frames $360.00
- Seat Color
Two-Tone Charcoal Vinyl $0.00
Two-Tone Sand Vinyl $0.00
- Leg Rests & Supports
Adjustable Footplate $0.00
Swing Away Footrests $168.00
Elevating Leg Rests $290.00
- Accessories
Lap Belt $0.00

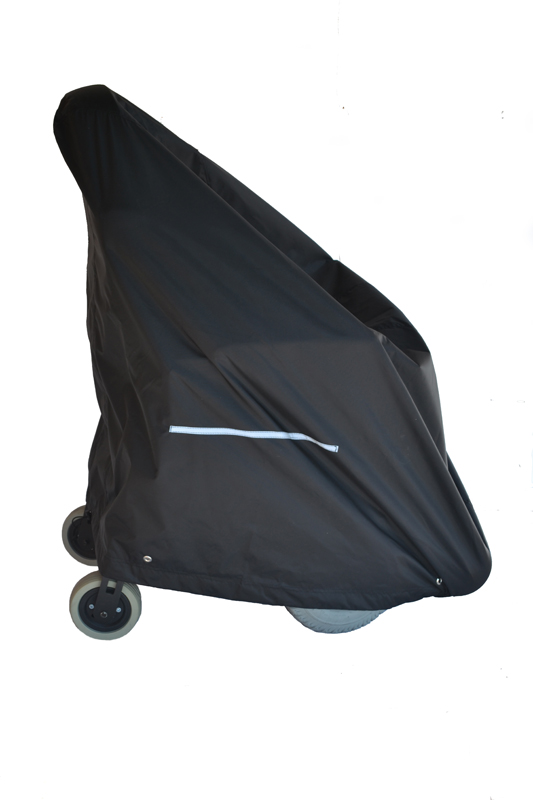

Large Power Chair Cover $150.00
Cane Holder Tube $63.00
Forearm Crutch Holder $56.00
Flag $15.35
- Accessories Requiring a Rear Mounting Bracket

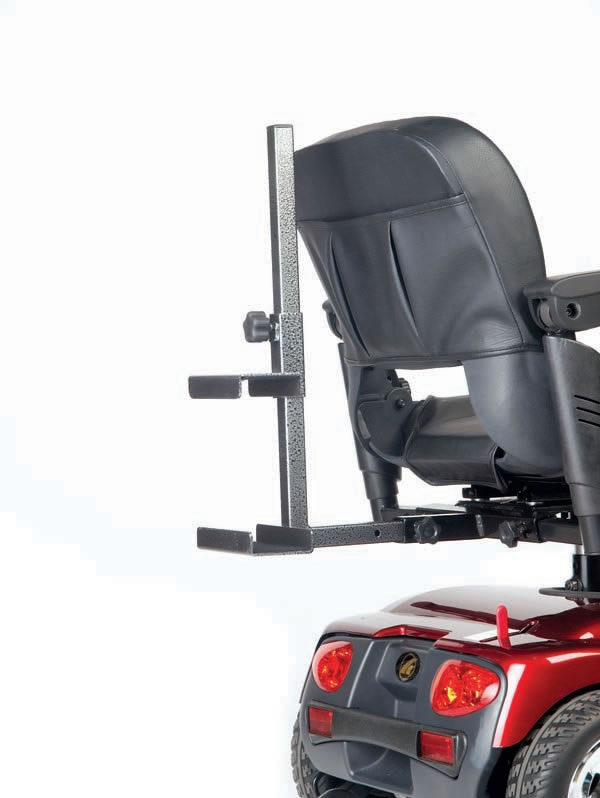

Rear Mounting Bracket $25.60
Rear Basket $108.00
Walker Holder $97.63
Oxygen Tank Holder $175.00
Quad Cane Holder $96.00
- Delivery
Standard Delivery $0.00
Front Door Delivery $72.00
White Glove Delivery (adds 10 days to delivery) $449.00
New OptionWhite Glove Rural/Dense Delivery Area Additional Charge (see Rural/Dense Delivery Area Chart) $200.00
